LED wall screen

Indoor P3.91
Pixel Pitch: 3.91mm

LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Cabinet Weight: 13KG
Location: China

Description

Project Cases
Indoor P3.91
Pixel Pitch: 3.91mm
LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: USA
Indoor P2.6
Pixel Pitch: 2.604mm

LEDs package:SMD1515
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 147456dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: Australia
Indoor P3.91
Pixel Pitch: 3.91mm

LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Cabinet Weight: 13KG
Location: USA
Indoor P2.97
Pixel Pitch: 2.97mm

LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 112896dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: UK

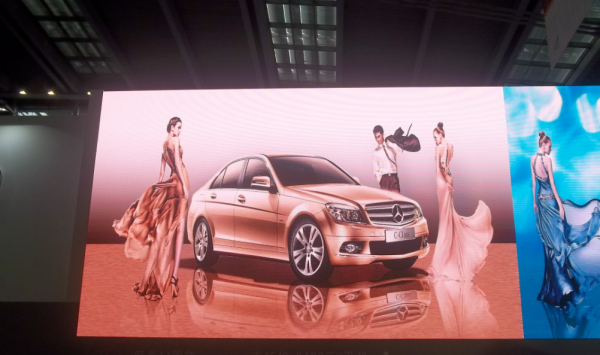

Indoor P4.81
Pixel Pitch: 4.81mm

LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: Canada
Indoor P3.91
Pixel Pitch: 3.91mm

LEDs package:SMD2121
Refresh Rate: ≥3840HZ
Brightness: 1200cd/㎡
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Cabinet Weight: 13KG
Location: China
Products Description

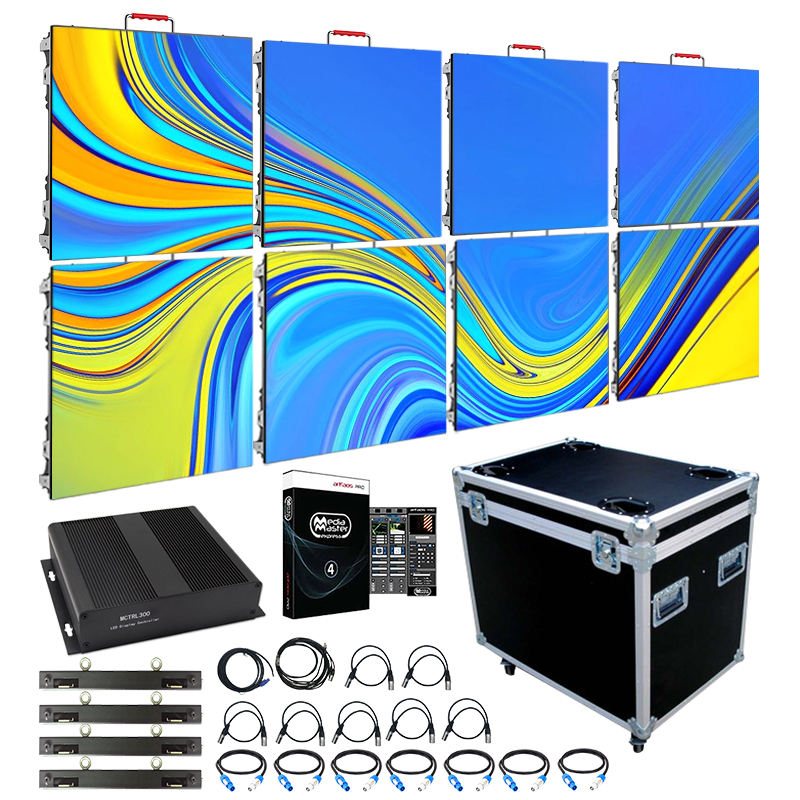

Indoor LED Screen Rental
Our company strives to give our customers the most options for LED screen rental solutions. Whether you are hosting a large conference, a huge music festival, or a state fair we have the screen for you. With both indoor and outdoor led video screen rentals we are not limited to any venue.
Model
P2.604
P2.97
P3.91
P4.81
Pixel Pitch(mm)
2.604
2.97
3.91
4.81
Pixel Matrix Per Sq.m
147,456dots
112,896dots
65,536dots
43,264dots
LEDs package
SMD1515
SMD2121
SMD2121
SMD2121
Brightness (cd/㎡)
≥1,200cd/㎡
≥1,200cd/㎡
≥1,200cd/㎡
≥1,200cd/㎡
Scan
1/32
1/28
1/16
1/13
Module Dimension
250*250mm
/0.82*0.82ft
250*250mm
/0.82*0.82ft
250*250mm
/0.82*0.82ft
250*250mm
/0.82*0.82ft
Cabinet Dimension
500*500*77mm
/500*1000*77mm
500*500*77mm
/500*1000*77mm
500*500*77mm
/500*1000*77mm
500*500*77mm
/500*1000*77mm
The Module Resolution
96*96dots
84*84dots
64*64dots
52*52dots
Cabinet Material
Die Casting Aluminum
Die Casting Aluminum
Die Casting Aluminum
Die Casting Aluminum
Cabinet Weight
7KG/13KG
7KG/13KG
7KG/13KG
7KG/13KG
Max. Power Consumption
800W
800W
800W
800W
Ave. Power Consumption
200-300W
200-300W
200-300W
200-300W
Service Access
Rear
Rear
Rear
Rear
Refresh Rate (HZ)
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
Grey Scale (bit)
16
16
16
16
Viewing Angle (H/V)
160°/160°
160°/160°
160°/160°
160°/160°
Best Viewing Distance
2.6-26meters
2.97-29.7meters
3.91-39.1meters
4.81-48.1meters
IP Rate
IP31
IP31
IP31
IP31
Input Voltage (AC)
110V-240V,50/60HZ
110V-240V,50/60HZ
110V-240V,50/60HZ
110V-240V,50/60HZ
Our Advantages
Work Process
Why Choose Us
XINLED Display Manufactory Co,. LTD is a manufactory that focus on the global LED market. We have more than 20 years experience in R&D, manufacturing, marketing of different kinds of indoor and outdoor LED display. Providing perfect solutions for our advertising, exhibition, church, stage, bar and stadium, etc industries customers. We are a one-stop solution provider of LED products from raw materials to after-sales services. With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world’s largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory. All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association. Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.

Packing & Delivery
Mode of transportation
Advantage
Disadvantage
advice
Sea freight
Large volume, low shipping costs, and well-connected waterways.
Slow, the sailing risk is high, and the sailing date is not easy to be accurate
Bulk cargo
Bulky cargo
Loose time
Air cargo
Safe, On Time, Shortened Delivery Times
Higher cost
valuable cargo
Urgent need
Land transportation
Fast delivery
large capacity
Can only drive on fixed routes, poor flexibility
Select according to the delivery address
Express
Short transit time
Volume weight restricted
Small cargo
Accessories
FAQ

Q: Who are we?

A: We are based in Guangdong, China, we have more than 20 years experience in LED display screen. Strong technical force to ensure excellent quality.

Q: What can you buy from us?

A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.

Q: Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: How can we guarantee quality?

A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
